Cảm biến áp suất 628-75 GH_P1_E1_S1

Cảm biến áp suất 628-75 GH_P1_E1_S1
  • Sản phẩm
  • Thương hiệu:
  • Giá:
    Liên hệ
  • Sản xuất tại:
    Mỹ
  • Mã HH:
    628-75-GH-P1-E1-S1
  • Đơn vị tính:
    Cái
  • Chọn số lượng:
Yêu cầu báo giá
Tổng quan về sản phẩm
Thông số kỹ thuật
  • Service: Compatible gases and liquids.
  • Wetted Materials: Type 316L SS.
  • Accuracy: 626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity, hysteresis, and repeatability.)
  • Temperature Limit: 0 to 200°F (-18 to 93°C).
  • Compensated Temperature Range: 0 to 175°F (-18 to 79°C).
  • Thermal Effect: ±0.02% FS/°F. (includes zero and span).
  • Pressure Limits: See Catalog page.
  • Power Requirements: 10 to 30 VDC (for 4 to 20 mA, 0 to 5, 1 to 5, 1 to 6 VDC outputs); 13 to 30 VDC (for 0 to 10, 2 to 10 VDC outputs); 5 VDC ±0.5 VDC (for 0.5 to 4.5 VDC ratio-metric output), 10 to 35 VDC (for 4 to 20 mA with -CB option); 13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with -CB option).
  • Output Signal: 4 to 20 mA, 0 to 5 VDC,1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC, or selectable 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC for -CB option.
  • Response Time: 300 ms.
  • Loop Resistance: 0 to 1000 Ohms max. R max = 50 (Vps-10) Ohms (4 to 20 mA output), 0 to 1250 Ohms max. Rmax = 50(Vps-10) Ohms (4 to 20 mA output with -CB option), 5K Ohms (0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output).
  • Stability: 1.0% FS/year (Typ.).
  • Current Consumption: 38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED).

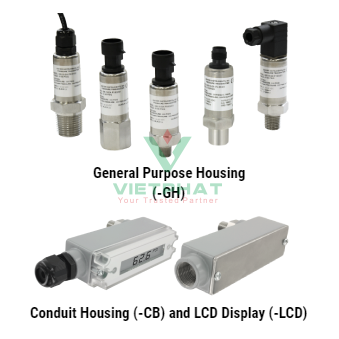

  • Electrical Connections: Conduit Housing (-CH): terminal block; 1/2" female NPT conduit. General Purpose Housing (-GH): cable or DIN EN175801-803-C.
  • Process Connection: 1/4" male or female NPT and BSPT.
  • Enclosure Rating: NEMA 4X (IP66).
  • Mounting Orientation: Mount in any position.
  • Weight: 10 oz (283 g).
  • Agency Approvals: CE, NSF, UL.
Ordering:
Model Number
Description
626-07-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-15 psig
626-08-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-30 psig
626-08-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 30 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-09-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-50 psig
626-10-CB-P1-E1-S8
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 3' cable, 0-10V, range 0-100 psig
626-10-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-100 psig
626-10-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 100 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-11-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-150 psig
626-12-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-200 psig
626-12-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 200 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-13-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-300 psig
626-13-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 300 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-14-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-500 psig
626-14-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 500 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-15-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 1000 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-18-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 3000 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
626-19-GH-P1-E4-S7
Industrial pressure transmitter, .25% FS, 5000 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-07-GH-P1-E1-S1
Industrial pressure transmitter, range 0-15 psig, max. pressure 30 psig, over pressure 150 psig.
628-08-GH-P1-E1-S1
Industrial pressure transmitter, range 0-30 psig, max. pressure 60 psig, over pressure 300 psig.
628-08-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 30 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-09-GH-P1-E1-S1
Industrial pressure transmitter, range 0-50 psig, max. pressure 100 psig, over pressure 300 psig.
628-10-CB-P1-E1-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 3' cable, 4-20 mA, range 0-100 psig
628-10-CB-P1-E1-S8
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 3' cable, 0-10V, range 0-100 psig
628-10-GH-P1-E1-S1
Industrial pressure transmitter, range 0-100 psig, max. pressure 200 psig, over pressure 500 psig.
628-10-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 100 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-11-CB-P1-E5-S1
Industrial pressure transmitter, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, range 0-150 psig
628-12-GH-P1-E1-S1
Industrial pressure transmitter, range 0-200 psig, max. pressure 400 psig, over pressure 1000 psig.
628-12-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 200 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-13-GH-P1-E1-S1
Industrial pressure transmitter, range 0-300 psig, max. pressure 600 psig, over pressure 1500 psig.
628-13-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 300 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-14-GH-P1-E1-S1
Industrial pressure transmitter, range 0-500 psig, max. pressure 1000 psig, over pressure 2500 psig.
628-14-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 500 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-15-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 1000 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-18-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 3000 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
628-19-GH-P1-E4-S7
Industrial pressure transmitter, 1.0% FS, 5000 psig, general purpose, 1/4" male NPT, .5-4.5 VDC output.
Thông số kỹ thuật
Tài liệu tham khảo
Tiêu đề Link download
Cảm biến áp suất Series 626 & 628 Cảm biến áp suất Series 626 & 628
