Ranges from 0.1 to 100 in w.c., Overpressure Protection to 15 psig, ±0.8% Accuracy

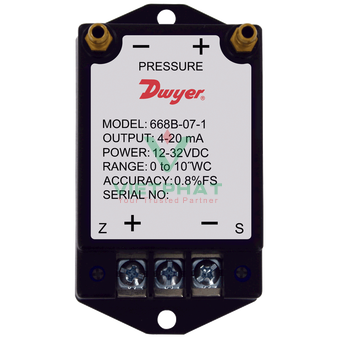

Compact Differential Pressure Transmitters is compact and lightweight. Applications include HVAC and VAV control, clean rooms, and duct static pressure measurement.
Features
-
Protection from 15 psi overpressure & incorrect wiring
-
High accuracy at low pressure ranges
-
Two package selections allows easy device mounting to best fit application pressure connections
Product Applications
Specifications
-
Service: Air and non-conductive gases.
-
Accuracy: ±0.8% FS.
-
Temperature Limits: Operating: 0 to 170°F (-18 to 77°C); Storage: -40 to 185°F (-40 to 85°C).
-
Pressure Limits: 15 psig (1.0 bar).
-
Thermal Effects: ±0.03% FS/°F (±0.054% FS/°C).
-
Compensated Range: From 40 to 170°F (4.4 to 77°C).
-
Power Requirements: 12 to 32 VDC.
-
Output Signals: 4 to 20 mA (2-wire), 0 to 10 VDC (3-wire), or 0 to 5 VDC (3-wire).
-
Zero Adjustment: Accessible under the small terminal cover.
-
Electrical Connection: Terminal strip.
-
Process Connection: 3/16" OD barbed brass for 1/8" ID push-on tubing.
-
Enclosure: Stainless steel and PC+ABS alloy, UL 94 V-0 rated.
-
Weight: 4.0 oz (113 g).
-
Agency Approvals: CE.
