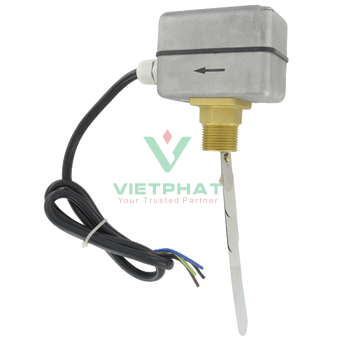

Công tắc dòng chảy

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật

Service: Compatible liquids.
Wetted Materials: Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Temperature Limits: 230°F (110°C).
Pressure Limits: 145 psig (10 bar).
Enclosure Rating: NEMA 4 (IP64).
Switch Type: SPDT snap switch.
Electrical Rating: 10 A res, 3 A ind @ 250 VAC.
Electrical Connection: Cable gland with attached wire leads or optional conduit connection.
Process Connection: 1" male NPT or BSPT.
Mounting Orientation: Switch must be installed vertically on horizontal pipe runs.
Set Point Adjustment: Four vane combinations and an adjustment screw.
Enclosure: Die-cast aluminum alloy.
Weight: 28.22 oz (0.8 kg).
Agency Approvals: CE.

Accessories:

Model	Description
FS-2-VANE	Replacement vane assembly

Ordering:

Model	Description
FS-2	Paddle flow switch, 1" male NPT.
FS-2-BSPT	Paddle flow switch, 1" male BSPT.
FS-2-CND	Paddle flow switch, NPT process connection, conduit electrical connection
FS-2-W8	Paddle flow switch, 1" male NPT connection with 8 ft leads

Thông số kỹ thuật

Tài liệu tham khảo

Tiêu đề	Link download
Công tắc dòng chảy Series FS-2	Công tắc dòng chảy Series FS-2
