The CR II module is suitable for installation of particulate filters, including the AstroCel II filter.
Product Overview
-
Rigid, airtight construction
-
Manufactured in stainless steel
-
Modular design
-
Minimum installation height
-
Rectangular connecting flange
Typical Applications
-
Pharmaceutical
-
Healthcare
-
Microelectronics
-
Food and Beverage
Specification
-
Filter Depth (Inches): Available for 3” filter
-
Housing Material: GI Finished with Epoxy Coated (Standard), Stainless Steel
-
Gasket Material: Available for Dry Seal Filter
-

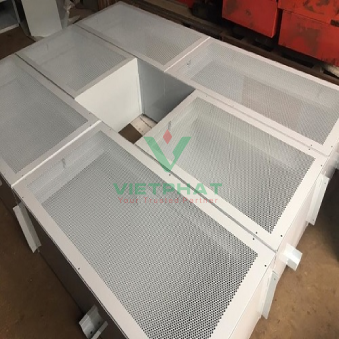

Supply Air Grill: Perforated Metal
-
Inlet Collar: 200 mm
-
Special Size Available: No
1. AAF PRODUCT CRII, 1800x2400x400mm
-
Housing Material: GI powder coat RAL9016
-
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
-
Housing Part Number: To be advise
-

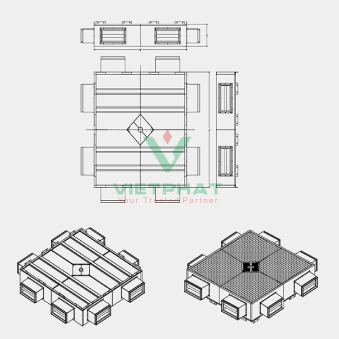

Drawing Reference: DS-F-013-156-R00
-
Air Flow: 5808 CMH @ 0.45m/s
-
c/w Astrocel ll Standard
-
Cellside Frame: Aluminium Extrusion
-
Efficiency: 99.999% @ 0.3micron [H14]
-
Face Velocity: 0.45m/s
-
Gasket: Neoprene Gasket on Air Entering Side
-
Faceguard: Both Sides
-
a) Filter Part Number: To be advise
-
Size (HxWxD): 860x860x69mm
-
Remark: 4pcs Ast II required per housing
-
b) Filter Part Number: To be advise
-
Size (HxWxD): 560x560x69mm Remark: 2pcs Ast II required per housing
2. AAF PRODUCT CRII, 2000x2500x400mm
-
Housing Material: GI powder coat RAL9016
-
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
-
Housing Part Number: To be advise
-
Drawing Reference: DS-F-013-157-R00
-
Air Flow: 6826 CMH @ 0.45m/s
-
c/w Astrocel ll Standard
-
Cellside Frame: Aluminium Extrusion
-
Efficiency: 99.999% @ 0.3micron [H14]
-
Face Velocity: 0.45m/s
-
Gasket: Neoprene Gasket on Air Entering Side
-
Faceguard: Both Sides
-
a) Filter Part Number: To be advise
-
Size (HxWxD): 660x1210x69mm
-
Remark: 4pcs Ast II required per housing
-
b) Filter Part Number: To be advise
-
Size (HxWxD): 560x910x69mm
-
Remark: 2pcs Ast II required per housing
3. AAF PRODUCT CRII, 1200x1900x400mm
-
Housing Material: GI powder coat RAL9016
-
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
-
Housing Part Number: To be advise
-
Drawing Reference: DS-F-013-158-R00
-
Air Flow : 2764 CMH @ 0.45m/s
-
c/w Astrocel ll Standard
-
Cellside Frame: Aluminium Extrusion
-
Efficiency: 99.999% @ 0.3micron [H14]
-
Face Velocity: 0.45m/s
-
Gasket: Neoprene Gasket on Air Entering Side
-
Faceguard: Both Sides
-
a) Filter Part Number: To be advise
-
Size (HxWxD): 610x1160x69mm
-
Remark: 2pcs Ast II required per housing
-
b) Filter Part Number: To be advise
-
Size (HxWxD): 260x560x69mm
-
Remark: 2pcs Ast II required per housing
4. AAF PRODUCT CRII, 2400x2400x400mm
-
Housing Material: GI powder coat RAL9016
-
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
-
Housing Part Number: To be advise
-
Drawing Reference: To be advise
-
Air Flow: 8097 CMH @ 0.45m/s
-
c/w Astrocel ll Standard cellside
-
Frame: Aluminium Extrusion
-
Efficiency: 99.999% @ 0.3micron [H14]
-
Face Velocity: 0.45m/s
-
Gasket: Neoprene Gasket on Air Entering Side
-
Faceguard: Both Sides
-
a) Filter size: 560x880x69mm (2pc of astrocel II required per housing)
-
b) Filter size: 579x880x69mm (8pc of astrocel II required per housing)
