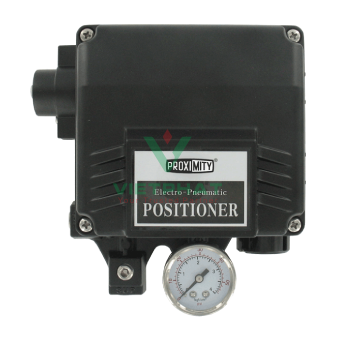

Series 165

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 418

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Input Signal: Pneumatic: 3 to 15 psig (0.2 to 1 bar); Electro-Pneumatic: 4-20 mA DC.
Input Impedance: (165EL only): 250 ±15 Ω.
Enclosure Material: Aluminum diecasting or 316SS.
Air Supply: 20 to 101 psig (1.4 to 7.0 bar).
Air Supply Connection: 1/4" NPT.
Gage Connection: 1/8" NPT.
Electrical Connection: Screw terminal.
Conduit Connection: 1/2" NPT (165EL only).
Linearity: ±0.2% of full scale.
Hysteresis: 1% of full scale.
Sensitivity: ±0.2% of full scale.
Repeatability: ±0.5% of full scale.
Air Consumption: 0.10 scfm (3 LPM) at 20 psig (1.4 bar) supply.
Flow Capacity: 28 scfm (80 LPM) at 20 psig (1.4 bar) supply.
Stroke: 0.5 to 6" (10 to 150 mm).
Enclosure Rating: IP66 (NEMA 4X).
Temperature Limits: Aluminum: -4 to 158°F (-20 to 70°C); SS: -40 to 158°F (-40 to 70°C).
Weight: 165NL: 3.1 lb (1.7 kg); 165EL: 6.1 lb (2.7 kg).
Agency Approvals: CE (165EL only).

Ordering:

Model	Description
165EL	Pneumatic and electro-pneumatic positioner, 4-20 mA input.
165EL-SS	Pneumatic and electro-pneumatic positioner, 4-20 mA input, stainless steel enclosure
165NL	Pneumatic and electro-pneumatic positioner, 3-15 psig input.
