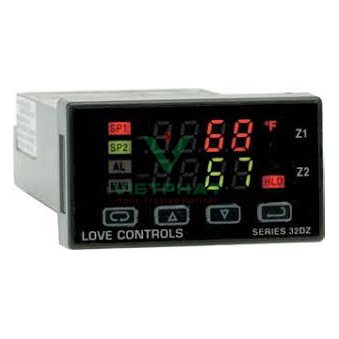

Series 32DZ

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 596

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Inputs: Thermocouple, Type J, K, E, L, and N.
Display: Two 4-digit, 7 segment, 0.25" high (6.35 mm) LEDs.
Accuracy: ±0.25% of span, ±1 least significant digit.
Supply Voltage: 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz single phase; 132 to 240 VDC, nominal, +10 - 20%.
Power Consumption: 5 VA maximum.
Operating Temperature: 14 to 131°F (-10 to 55°C).
Memory Backup: Nonvolative memory. No batteries required.
Control Output Ratings: Relay: SPST, 3A @ 240 VAC resistive, 1.5A @ 240 VAC inductive, Pilot Duty Rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC; Proportional Current: 4 to 20 mA; SSR: 0.75 A at 240 VAC resistive at 77°F (25°C), de-rates to 1.0 A at 130°F (55°C), minimum load of 100 mA; Voltage: Switched 5 VDC.
Weight: 4 oz (114 g).
Front Panel Rating: NEMA 4X (IP66).

Ordering:

Model	Description
32DZ1111	Temperature/process controller, thermocouple inputs, SSR outputs.
32DZ1122	Temperature/process controller, thermocouple inputs, 5 VDC outputs.
32DZ1133	Temperature/process controller, thermocouple inputs, relay outputs.
32DZ5533	Temperature/process controller, current inputs, relay outputs.
