Precise Air Pressure Measurement, ±0.1% F.S. Accuracy

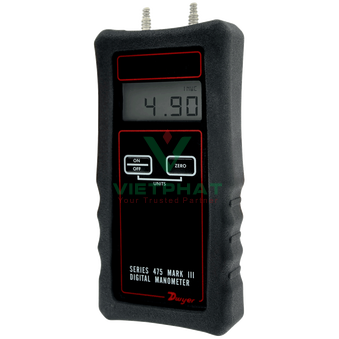

Handheld Digital Manometer is a versatile, hand-held, battery operated manometer. Applications include lab calibration.
Features
-
Precise 0.1% FS accuracy provides four times better accuracy than most standard manometer/gages
-
Aluminum housing protects instrument against damage
-
40 readings in internal memory reduces time to record data
Product Applications
Specifications
-
Service: Air and compatible gases.
-
Wetted Parts: Consult factory.
-
Accuracy: ±0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); ±1% of full scale from 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C).
-
Pressure Hysteresis: ±0.1% of full scale.
-
Pressure Limits: See chart on catalog page.
-
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
-
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
-
Display: 4-digit LCD (.425" H x .234" W digits).
-
Resolution: See chart on catalog page.
-
Power Requirements: 9 volt alkaline battery. Battery included but not connected.
-
Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing for 477B-1, 477B-2, 477B-3, 477B-4 and 477B-5 only. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 477B-6 and 477B-7 only.
-
Weight: 10.2 oz. (289 g).
-
Agency Approvals: CE.
