Series 4B

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 470

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Inputs: Thermocouple, RTD, DC voltages or DC current.
Display: Two 4-digit, 7 segment. PV: 3/4" H (19 mm) red; SV: 1/2" H (12.7 mm) green.
Accuracy: ±0.25% span, ±1 least significant digit.
Supply Voltage: 100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model).
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA; Linear Voltage: 0-10 V.
Communication: RS-485 Modbus® A-5-11/RTU communication protocol.
Weight: 15 oz (425 g).
Agency Approvals: CE, RoHS, cUL, UL.
Front Panel Rating: IP56.

Ordering:

Model	Description
4B-23	1/4 DIN temperature/process controller, (1) voltage pulse output and (1) relay output.
4B-23-LV	1/4 DIN temperature/process controller, (1) voltage pulse output and (1) relay output, low voltage
4B-33	1/4 DIN temperature/process controller, (2) relay outputs.

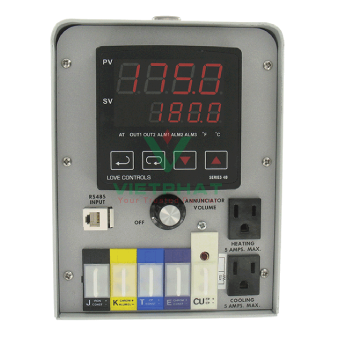

4B-33-986/U	Benchtop Temperature/Process Controller, 120 V supply, with 2 relay outputs, and universal sensor input.
4B-33-LV	1/4 DIN temperature/process controller, (2) relay outputs, low voltage
4B-53	1/4 DIN temperature/process controller, (1) current output and (1) relay output.
4B-53-LV	1/4 DIN temperature/process controller, (1) current output and (1) relay output, low voltage
4B-63	1/4 DIN temperature/process controller, (1) linear voltage output and (1) relay output.
4B-63-LV	1/4 DIN temperature/process controller, (1) linear voltage output and (1) relay output, low voltage
