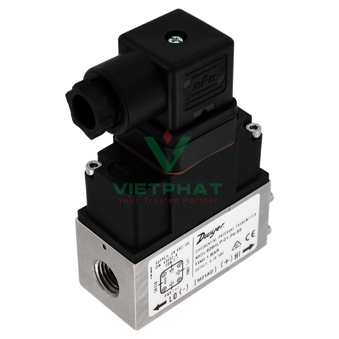

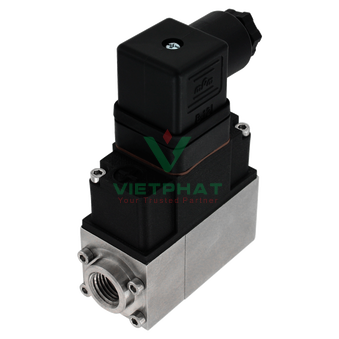

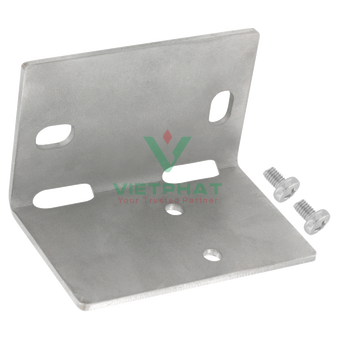

High Accuracy, IP65 Enclosure
Differential Pressure Transmitters
Features
-
Rugged, versatile, high accuracy device
-
For liquid or gas systems requiring precise measurements
-
Provide excellent response and reliability
-
Suitable for static and dynamic measurements
-
Converts pressure changes into 4 to 20 mA or 0 to 10 VDC output
-
Compact, lightweight, capable to be installed in any arrangement making installation very simple
-
Capable to handle up to 360 psi (25 BAR)
Product Applications
-
Heat exchangers
-
Fan coils/air handlers
-
Core testing applications
-
Hydraulic systems
-
High line pressures/low DP
-
Pumps
-
Commercial/industrial processes
-
Sanitary process
Specifications
-
Service: Compatible gases or liquids.
-

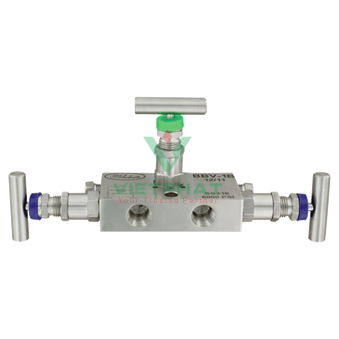

Wetted Material: 304 SS, EPDM, silicone grease, alumina ceramic; optional 3-way valve: brass, copper, nylon, HNBR, FKM, NBR.
-
Housing Material: ABS.
-
Enclosure Rating: IP65.
-
Accuracy: ±1% from -5 to 60°C (23 to 140°F).
-
Stability: ±1% FS/year.
-
Temperature Limits: Ambient: -10 to 60°C (14 to 122°F); Process: -10 to 80°C (14 to 176°F).
-
Relative Humidity: 10% to 90% non-condensing.
-
Installation Position: Not position sensitive.
-
Over Pressure : 5 bars for 0 to 1 bar and 0 to 2.5 bar ranges, 12 bars for 0 to 4 bar and 0 to 6 bar ranges; 70 psi for 0 to 15 psi and 0 to 30 psi ranges, 174 psi for 0 to 60 psi and 0 to 90 psi ranges.
-
Burst Pressure: 8 bars for 0 to 1 bar and 0 to 2.5 bar ranges,18 bars for 0 to 4 bar and 0 to 6 bar ranges; 115 psi for 0 to 15 psi and 0 to 30 psi ranges, 260 psi for 0 to 60 and 0 to 90 psi ranges.
-
Static Pressure Limits: 25 bar (360 psi).
-
Output Signal: 4 to 20 mA, 0 to 10 VDC.
-
Response Time: 50 ms.
-
Rated Supply Voltage: 0 to 10 VDC Output: 12 to 36 VDC or 12 to 32 VAC (@ Max load of 2k Ω) 4 to 20mA output: 8 to 36 VDC.
-
Max Loop resistance: (Supply Voltage – 8 V) / 0.02 for 4 to 20mA output.
-
Power Consumption: Vout = 13 mA max, Iout = 24 mA max.
-

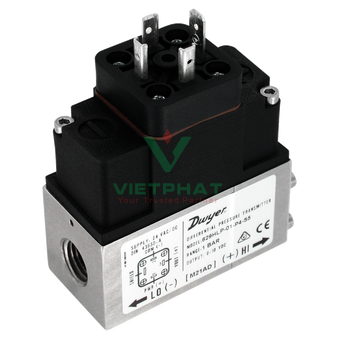

Electrical Connections: Form A DIN 43650.
-
Process Connections: Standard: 1/4" female NPT, 1/4" female BSPT; with 3-way valve option: 1/8" female NPT, 1/8" female BSPT.
-
Weight: 1 lb 4 oz (567 g).
-
Approvals: CE.
