Designed for OEM’s, High Current Capacity

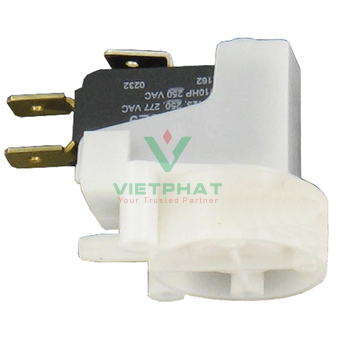

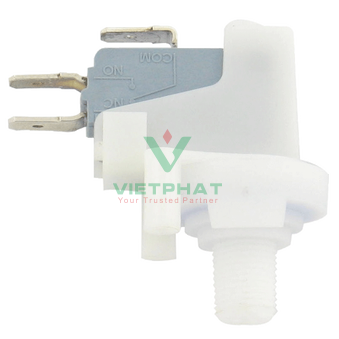

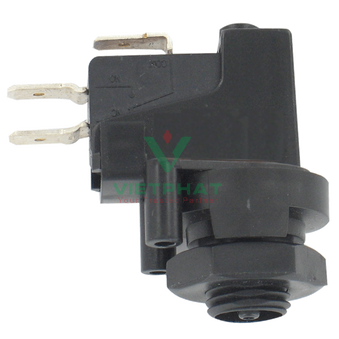

Mini Pressure Switch is designed for high current applications. These products are small and inexpensive. Compact and lightweight where models are built to specification.
Specifications
-
Service: Non-hazardous gas or liquid.
-
Wetted Materials: Silicone and nylon.
-
Temperature Limits: 14 to 185°F (-10 to 85°C).
-
Pressure Limits: 50 psig (3.45 bar).
-
Enclosure Rating: General purpose.
-
Repeatability: ±10% of set point.
-
Mounting Orientation: Switch can be installed in any position.
-
Weight: 0.04 lb (0.02 kg).
-
Deadband: 0.6 to 0.8" w.c. (1.5 to 2 mbar).
