Series ACT

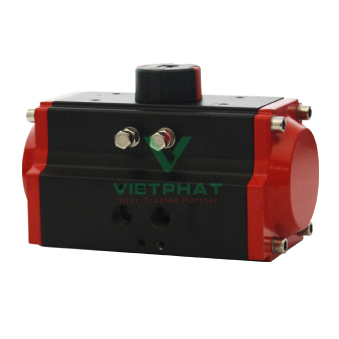

Pneumatic “DA” and “SR” Series

• Type: DA series is double-acting and SR series is spring return (rack and pinion).
• Normal Supply Pressure: DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar).
• Maximum Supply Pressure: 120 psi (8.6 bar).
• Air Connections: DA01: 1/8" female NPT; DA02 to DA14: 1/4" female NPT; SR02 to SR14: 1/4" female NPT.
• Housing Material: Anodized aluminum body and epoxy coated aluminum end caps.
• Temperature Limits: -40 to 176°F (-40 to 80°C).
• Accessory Mounting: NAMUR standard.

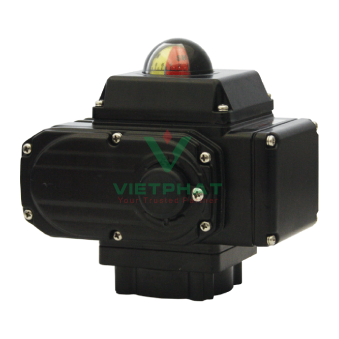

Electric “TD” and “MD” Series

• Power Requirements: 110 VAC, 220 VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC).
• Power Consumption: See manual.
• Cycle Time (per 90°): TD01: 4 s; MD01: 10 s; TD02 and MD02: 20 s; TD03 and MD03: 30 s; TD04 and MD04: 30 s; TD05 and MD05: 30 s; TD06 and MD06: 45 s; TD07 and MD07: 45 s.
• Duty Rating: 85%.
• Enclosure Rating: NEMA 4X (IP67).
• Housing Material: Powder coated aluminum.
• Temperature Limits: -22 to 140°F (-30 to 60°C).
• Electrical Connection: 1/2" female NPT.
• Modulating Input: 4 to 20 mA.
• Standard Features: Manual override, position indicator, and TD models come with two limit switches.

Electric “TI” and “MI” Series

• Power Requirements: 110 VAC, 220 VAC, 24 VAC or 24 VDC.
• Power Consumption: See instruction manual.
• Cycle Time (per 90°): See instruction manual.
• Duty Rating: See instruction manual.
• Enclosure Rating: NEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II.
• Housing Material: Powder coated aluminum.
• Temperature Limits: -40 to 140°F (-40 to 60°C).
• Electrical Connection: 1/2" female NPT.
• Modulating Input: 4 to 20 mA.
• Standard Features: Position indicator and two limit switches.
