Self-Powered, Compact Size, USB Interface
Button Data Logger records temperature and humidity in applications where size and cost effectiveness are vital. Housed in a compact stainless steel case. Applications vary.
Features
-
Compact to fit in small areas and durable to work in hostile environments
-
Self-powered unit gives no need for external power supply
-
Magnetic mounting for quicker installation
Product Applications
-
Food processing verification
-
Pharmaceutical storage
-
Transportation of temperature sensitive goods
-
HVAC system testing and balancing
Specifications
-
Range: BLD-1: -40 to 185°F (-40 to 85°C); BDL-2: -4 to 185°F (-20 to 85°C); 0 to 100% RH.
-
Memory Size: BDL-1: 2048 readings; BDL-2: 4096 temperature and 4096 humidity readings (low resolution), 2048 temperature and 2048 humidity readings (high resolution).
-
Accuracy: BDL-1: ±1.5°F (±1°C) from -22 to 158°F (-30 to 70°C); BDL-2: ±0.9°F (±0.5°C) from 14 to 158°F (-10 to 70°C), ±5% RH.
-
Resolution: BDL-1: 8 bit; BDL-2: 8 or 11 bit.
-
Sampling Method: Stop on memory full or continuous recording.
-
Sampling Rate: BDL-1: Selectable from 1 to 255 m.; BDL-2: Selectable from 1 s. to 24 hrs.
-
Computer Requirements: Windows® 98, Windows® 2000, Windows® ME, Windows NT®, Windows® XP, and Windows Vista® operating system with 16 MB RAM, one free USB port.
-
Power Requirements: 3V lithium metal battery, internal, non-replaceable.
-
Battery Life: BDL-1: 10 yrs. (approx); BDL-2: 5 yrs. (approx).
-
Alarms: Programmable high/low.
-

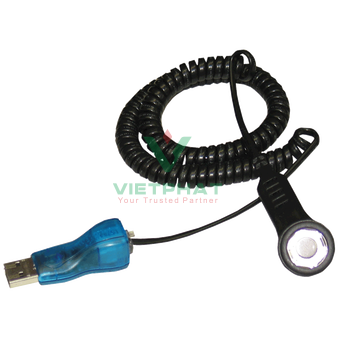

Interface: USB port (cable included with kits).
-
Housing Material: 305 SS.
-
Weight: 0.14 oz (4 g).
-
Agency Approvals: CE, RoHS.
