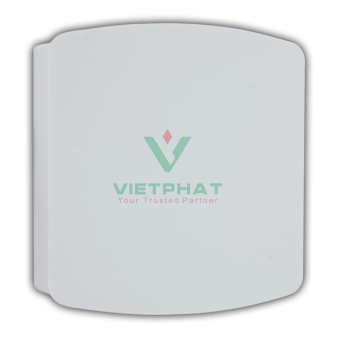

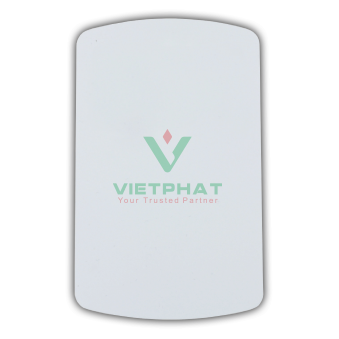

Series CDTA

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 901

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Sensor (CO2): Single-beam, dual-wavelength NDIR; Humidity: Capacitive polymer; Temperature: 10KΩ thermistor.
Range: CO2: 0 to 2000 or 5000 PPM CO2 (depending on model); Humidity: 0 to 100% RH; Temperature: 32 to 122°F (0 to 50°C).
Accuracy: CO2: ±40 ppm ±3% of reading; RH: ±2% (10 to 90% RH); Temperature: ±1°C @ 25°C.
Temperature Dependence (CO2): ±8 ppm / °C at 1100 ppm.
Non-Linearity (CO2): 16 ppm.
Pressure Dependence (CO2): 0.13% of reading per mm of Hg.
Response Time (CO2): 2 min. for 99% step change.
Temperature Limits: 32 to 122°F (0 to 50°C).
Humidity Limits: 10 to 95% RH (non-condensing).

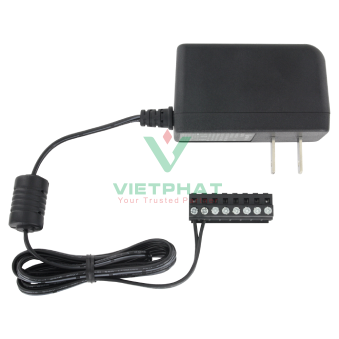

Power Requirements: 10 to 42 VDC / 10 to 30 VAC.
Power Consumption: Average: 0.5 watts; Peak: 1.2 watts.
Output: 2-wire RS-485, Modbus® RTU or BACnet MS/TP communication protocol.
Weight: 4.4 oz (125 g).
Enclosure Rating: IP20.
Agency Approvals: BTL, CE.

Ordering:

Model	Description
CDTA-2E000	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, European Wall Mount Housing, 2000 PPM Range

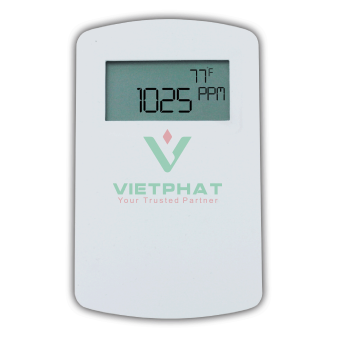

CDTA-2E000-LCD	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, European Wall Mount Housing, 2000 PPM Range, LCD Display
CDTA-2N000	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, North American Wall Mount Housing, 2000 PPM Range
CDTA-2N000-LCD	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, North American Wall Mount Housing, 2000 PPM Range, LCD Display
CDTA-5E000	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, European Wall Mount Housing, 5000 PPM Range
CDTA-5E000-LCD	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, European Wall Mount Housing, 5000 PPM Range, LCD Display
CDTA-5N000	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, North American Wall Mount Housing, 5000 PPM Range
CDTA-5N000-LCD	Carbon Dioxide / Temperature / Humidity Communicating Stat with Set Point and Override, Modbus and BACnet Output, North American Wall Mount Housing, 5000 PPM Range, LCD Display
