±0.05% FS Accuracy, 316 SS Wetted Parts

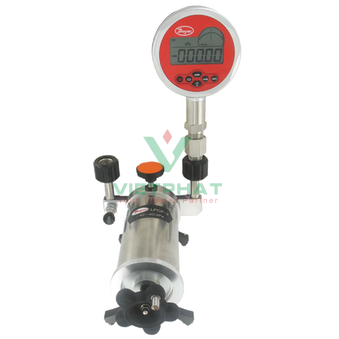

Digital Calibration Pressure Gage offers a complete pressure gage with calibration capabilities. Complete with 7 selectable pressure units, back light, and zeroing capability.
Features
-
Indicator can display percent of range, pressure swings or alarm set points
-
Minimum and maximum peak detection
-
Selectable 10, 20, or 30 second backlight
-
Temperature indication
-
Eleven selectable pressure units
-
Stainless steel 1/2" male NPT connection
-
Highest accuracy provides exceptional measurement for calibration minimizing costly out of specification conditions
-
Stainless steel housing resists ambient corrosion for longer service life in harsh environments
-
Lightweight and slim, yet large easy to read battery-powered gage make them easy to carry and read
-
Specified with high ambient temperature rating means more robust uses and longer service-life
-
Indicator can display pressure swings, minimum and maximum peak detection with alarm set points provides a multipurpose tool where critical calibration is needed
Product Applications
Specifications
-
Service: Compatible, non-combustible liquids and gases.
-
Wetted Materials: 316 SS.
-
Other Materials: Housing: Aluminum alloy; Display: Acrylic MR200; Buttons: Silicon gel; Back plate: 304 SS; Back seal: Oil-proof latex.
-
Accuracy: 0.05% FS; ±1 least significant digit.
-
Temperature Accuracy: ±1°C.
-
Pressure Limits: 120% FS.
-
Temperature Limits: 14 to 122°F (-10 to 50°C).
-
Compensated Limits: 32 to 122°F (0 to 50°C).
-
Process Connection: 1/2" male NPT.
-
Display: 5-digit LCD with blue backlight.
-

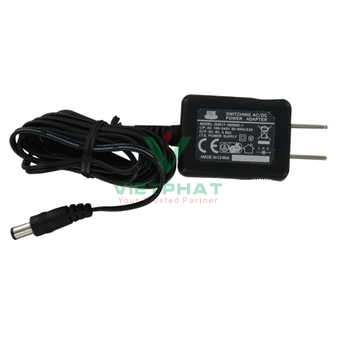

Power Requirements: 9 V alkaline battery, not included, or power adapter accessory.
-
Battery Life: Up to 10,000 hours (600 working hours @ default 3 times/s).
-
Auto Shut-off: Backlight: On/off, 10 s, 20 s, 30 s.
-
Weight: 1.28 lb (0.58 kg).
-
Agency Approvals: CE.
