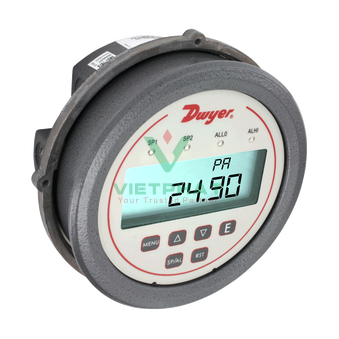

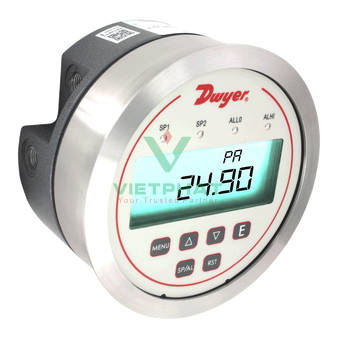

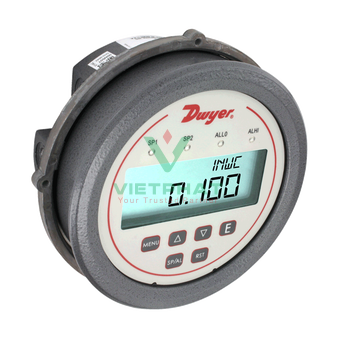

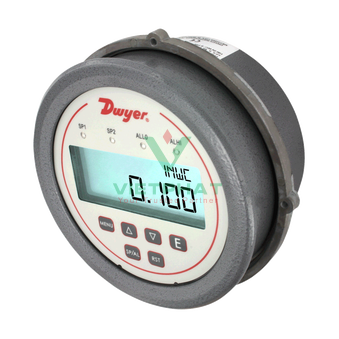

3 in 1 Instrument: Gage, Switch and Transmitter, Square Root Output for Flow
Differential Pressure Controllers are available in 3-in-1 instruments that have a digital display gage, control relay switches, and a transmitter with current output.
Features
-
3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time and money
-
Full scale accuracy of 1.5% even on extremely low ranges, and 0.5% for ranges above 5 in w.c. provide for greater measurement precision
-
Secure menu program provides access to device operation only for the right skill level
Product Applications
Specifications
-
Service: Air and non-combustible, compatible gases.
-
Wetted Materials: Consult factory.
-
Housing Material: Die cast aluminum case and bezel.
-
Accuracy: ±1.5% for 0.25" and ±0.25" w.c. ranges. Ranges 0.5" to 5" w.c. and corresponding bi-directional (except ±2.5" w.c.) ±1%; All other ranges: ±0.5% @ 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up).
-
Stability: < ±1% per year.
-
Pressure Limits: Ranges (uni- and corresponding bidirectional), ≤ 1 in w.c.: 9 psi; 2.5 and 5 in w.c.: 1.5 psi; 10 in w.c.: 3 psi; 25 in w.c.: 8 psi; 50 in w.c.: 15 psi; 100 in w.c.: 20 psi.
-
Temperature Limits: 32 to 140°F (0 to 60°C).
-
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
-
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C). For 0.25" and ±0.25" w.c. ranges: ±0.03%/°F (±0.054%/°C).
-
Power Requirements: 12 to 28 VDC, 12 to 28 VAC 50 to 400 Hz.
-
Power Consumption: 3 VA max.
-
Output Signal: 4 to 20 mA DC into 900 Ω max.
-
Zero & Span Adjustments: Accessible via menus.
-
Response Time: 250 ms (damping set to 1).
-
Display: Backlit 4 digit LCD 0.4" height LED indicators for set point and alarm status.
-
Electrical Connections: 15 pin male high density D-sub connection. 18" (46 cm) cable with 10 conductors included.
-
Process Connections: 1/8" female NPT. Side or back connections.
-
Mounting Orientation: Mount unit in vertical plane.
-
Size: 5" (127 mm) OD x 3-1/8" (79.38 mm).
-
Weight: 1.75 lb (794 g).
-
Agency Approvals: CE.
SWITCH SPECIFICATIONS
-
Switch Type: 2 SPDT relays.
-
Electrical Rating: 1 A @ 30 VAC/VDC.
-
Set Point Adjustment: Adjustable via keypad on face.
