±0.25% or ±0.5% F.S. Accuracy, NEMA 4X (IP66) Aluminum Housing

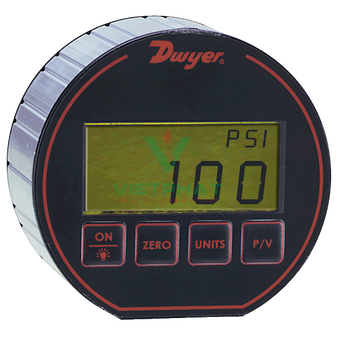

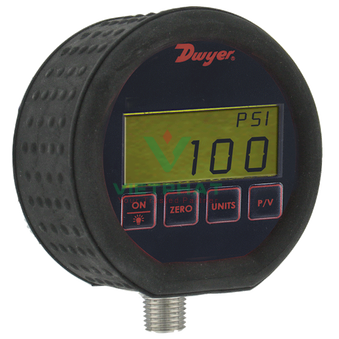

Digital Pressure Gage include a backlight, peak and valley, tare, auto zero and conversion of pressure units. Battery-powered and has an auto-shut off.
Features
-
High accuracy provides exceptional measurement minimizing costly out of specification conditions
-
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
-
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
-
Push-button zero reduce installation and service time
Product Applications
Specifications
-
Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
-
Wetted Materials: Type 316L SS.
-
Housing Materials: Polycarbonate front and back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction.
-
Accuracy: DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity, hysteresis, repeatability).
-
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
-
Enclosure Rating: Designed to meet NEMA 4/4X (IP66).
-
Temperature Limits: 0 to 130°F (-18 to 55°C).
-
Thermal Effect: Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F.
-
Size: 3.00" OD x 1.90" deep (max).
-
Process Connection: 1/4" male NPT.
-
Weight: 8.84 oz (275 g).
-
Display: 4 digit (.425" H x .234" W digits).
-
Power Requirements: (2) AAA alkaline batteries, included, user replaceable.
-
Battery Life: 2000 hours typical; Low battery indicator. (60 hours in continuous use).
-
Auto Shut-Off: Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
-
Agency Approvals: DPG-000: CE; DPG-100: CE, FM approved to be intrinsically safe for Class I, Division 1, Groups A, B, C and D, for ranges 0-5 to 0-3000 psi.
