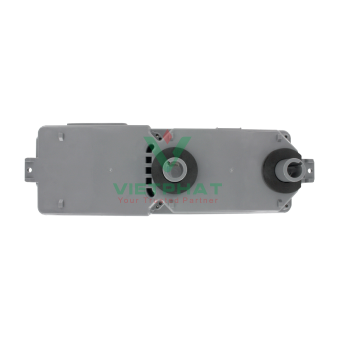

Series SL-2000

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 1110

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Sensor Type: Photoelectric or Ionization.
Air Velocity Range: 100 to 4000 ft/min.
Ambient Temperature: SL-2000-N: 32°F to 158°F (0°C to 70°C); SL-2000-P: 32°F to 140°F (0°C to 60°C).
Humidity Limits: 85 ±5 % RH (@32 ±2°C; 86 ±3.6°F) Non-condensing/Nonfreezing.
Power Requirements: Standby: 230 VAC (12 mA), 115 VAC (22 mA), 24 VAC (55 mA), or 24 VDC (14 mA); Alarm: 230 VAC (18 mA), 115 VAC (32mA), 24 VAC (190 mA), or 24 VDC (68 mA).Standby: 230 VAC (12 mA), 115 VAC (22 mA), 24 VAC (55 mA), or 24 VDC (14 mA); Alarm: 230 VAC (18 mA), 115 VAC (32mA), 24 VAC (190 mA), or 24 VDC (68 mA).
Electrical Rating: Alarm contacts: 2 sets form “C” rated at 10 A resistive @ 115 VAC and 1 set form “A” rated at 2 A; Trouble contacts: 1 set form “C” rated at 10 A @ 115 VAC.
Electrical Connections: Screw terminals.
Enclosure: Grey plastic back box, clear plastic cover (Makrolon 94V-0).
Enclosure Rating: SL-2000: NEMA 1; WP-2000: NEMA 3R.
Radioactive Element: For SL-2000-N (Ionization) americium 241; 0.9 Micro-curie; Do not expose to corrosive atmospheres.
Weight: 2.5 lbs.
Approvals: cULus (UL 268A) File # S2829, CSFM Listed (3240-1004:105), MEA Accepted (73-92-E; VOL. 27).

Ordering:

Model	Description
SL-2000-N	Conventional, 4-wire, universal voltage, ionization duct smoke detector
SL-2000-P	Conventional, 4-wire, universal voltage, photoelectric duct smoke detector

Chọn sản phẩm

Chọn	Giá	Tên HH	Mã HH

Tài liệu tham khảo

Tiêu đề	Link download
Chưa có catalogue.

Yêu cầu báo giá
