Fully Field Configurable, 16-Bit Color Touch Screen Display
Smart Programmable Panel Meter is a full-color touch-screen display that can be used in a variety of applications. Applications include tank level, power monitoring, and indoor air quality conditions.
Features
-
Available with 2.4", 2.8", or 3.5" color touch screen display
-
Free downloadable Windows® software allows the unit to be customized to specific applications
Product Applications
Specifications
-
Inputs: Current: 0 to 50 mA, scalable (factory set from 4 to 20 mA); Voltage: 0 to 40 VDC, scalable (factory set from 0 to 10 V).
-
Accuracy: 0.1%.
-
Resolution: 0.3 to 9.8 mV (depending on input range).
-
Power Supply: 4-30 VDC max or via USB.
-
Current Consumption: 190 mA max.
-
Display: 2.4", 2.8" or 3.5" TFT full color screen.
-
Display Resolution: 320 x 240 pixels.
-
Sampling Rate: 3 samples/second.
-
Operating Temperature: 32 to 104°F (0 to 40°C).
-
Warm Up: 30 seconds
-
Mounting: Panel mount.
-
Connection: Screw terminals, pin connection, or USB.
-
Software Requirements: Compatible with Windows® 7, Windows® 8 and Windows® 10.
-
Weight: 2.8 oz (79.4 g).
-
Approvals: CE, RoHS.
SPPM-HSG SPECIFICATIONS
-
Service: Indoor or outdoor.
-
Material: Painted aluminum and glass.
-
Enclosure Rating: NEMA 4X (IP66).

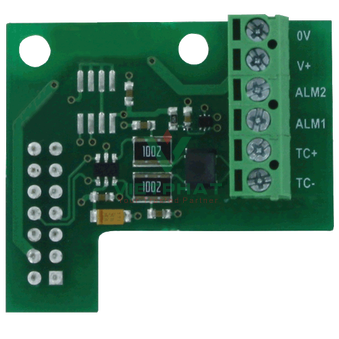

A-SPPM-TC SPECIFICATIONS
-
Probe Measurement Range: K-type: -328 to 2462°F (-200 to 1350°C); J-type: -328 to 2174°F (-200 to 1190°C); T-type: -328 to 734°F (-200 to 390°C).
-
Temperature Limits: 14 to 104°F (-10 to 40°C).
-
Resolution: 1.0°F (0.5°C).
-
Power Requirements: Powered by USB port through SPPM panel meter.
-
Accuracy: ±2.0°F (±1.0°C).
-
Weight: 0.9 oz (25.5 g).
-
Agency Approvals: RoHS.
