Combination Pressure/Temperature Gage

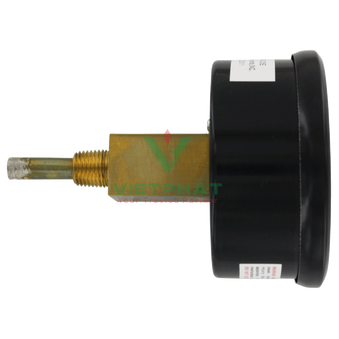

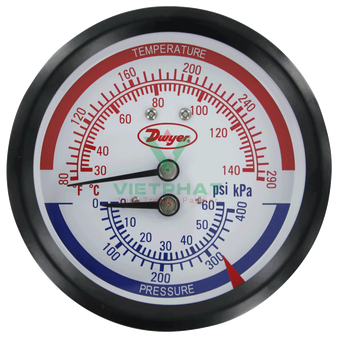

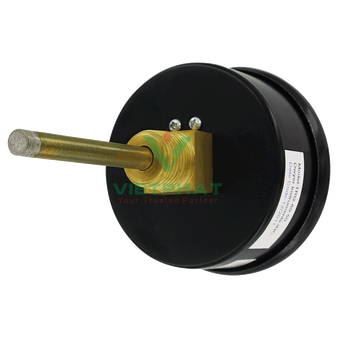

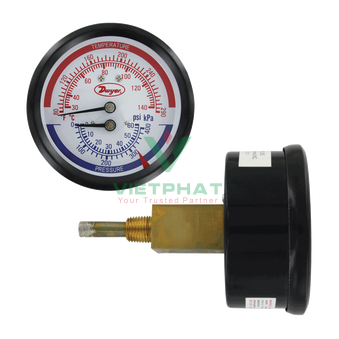

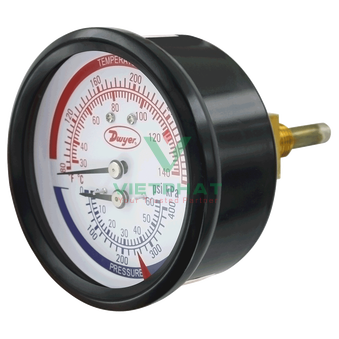

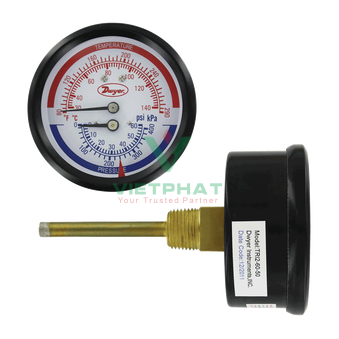

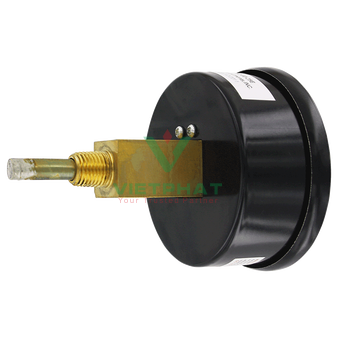

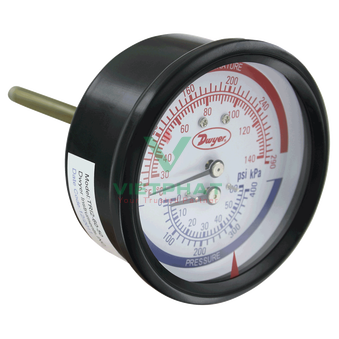

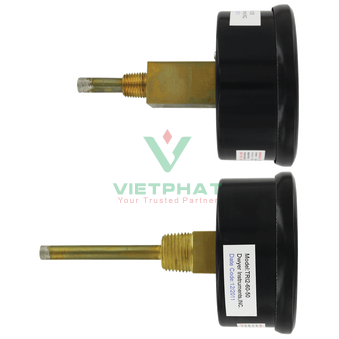

Tridicator Gage comes in three different connection options including lower mount, center back mount, and center back mount with extension shank. This product is a combination of a pressure gage and a thermometer.
Specifications
-
Service: Compatible gases and liquids.
-
Wetted Materials: Brass connection and phosphor bronze Bourdon tube.
-
Housing: Drawn steel, black finish.
-
Accuracy: Pressure ±3-2-3%; Temperature ±1 scale division.
-
Temperature Range: All models: 80 to 290°F (30 to 140°C).
-
Temperature Limits:
-
Pressure Limits: FS range.
-
Size: 3" (76 mm).
-
Process Connections: 1/2" male NPT back or bottom, 1/4" male NPT back connection.
-
Weight:
