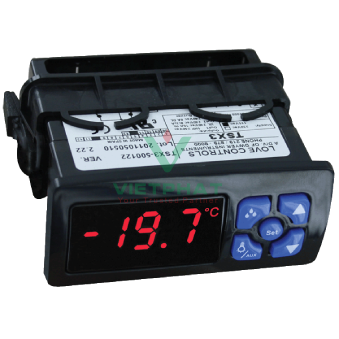

Series TSX3

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 577

Thương hiệu:
Dwyer
Sản xuất tại:
Mỹ
Mã HH:
Đơn vị tính:
Cái

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Probe Range: PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input: PTC (1000 Ω @ 25°C); NTC (10K Ω @ 25°C); Digital Input Contact.
Output: All models SPST NO relay resistive load 16 A, inductive load 5 A, 10 FLA, 60 LRA @ 240 VAC; dual output models also include 8 A resistive, 3 A inductive SPDT @ 240 VAC; three output models also include 8 A resistive SPST NO @ 240 VAC, 5 A resistive SPST NO @ 240 VAC.
Horsepower Rating: 1HP @ 240 VAC.
Control Type: On/Off.
Power Requirement: 115 VAC, 230 VAC, 12 VAC/VDC, 24 VAC/DC (±10%) depending on model.
Power Consumption: 3.6 VA (115/230/24 V), 1.5 VA (12 V).
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: 0.1°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 131°F (0 to 55°C).
Weight: 2.3 oz (65 g).
Front Protection: IP65 (NEMA 4X).
Agency Approvals: CE, cURus.

Ordering:

Model	Description
TSX3-500122	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 115V supply power, with red display.
TSX3-500132	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 115V supply power, with red display.
TSX3-500222	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 230V supply power, with red display.
TSX3-500232	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 230V supply power, with red display.
TSX3-500322	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 12 VAC/VDC supply power, with red display.
TSX3-500332	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 12 VAC/VDC supply power, with red display.
TSX3-500422	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 24 VAC/VDC supply power, with red display.
TSX3-500432	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 24 VAC/VDC supply power, with red display.
TSX3-520122	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 115V supply power, with blue display.
TSX3-520132	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 115V supply power, with blue display.
TSX3-520222	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 230V supply power, with blue display.
TSX3-520232	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 230V supply power, with blue display.
TSX3-520322	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 12 VAC/VDC supply power, with blue display.
TSX3-520332	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 12 VAC/VDC supply power, with blue display.
TSX3-520422	Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 24 VAC/VDC supply power, with blue display.
TSX3-520432	Digital refrigeration temperature switch, three outputs, two temperature probe inputs, 24 VAC/VDC supply power, with blue display.
