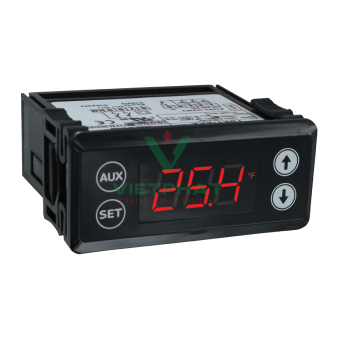

Series TSXT

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 704

Thương hiệu:
Dwyer
Sản xuất tại:
Mỹ
Mã HH:
Đơn vị tính:
Cái

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Probe Range: PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input: PTC (1000 Ω @ 25°C) or NTC (10KΩ @ 25°C) thermistor.
Output: Relay 1: SPST relay rated 16 A @ 240 VAC resistive, 10 FLA, 60 LRA; Relay 2: SPST relay rated 5 A @ 240 VAC resistive; Relay 3: SPST relay rated 8 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP (Relay 1).
Control Type: On/off with defrost options.
Power Requirements: 115 VAC, 230 VAC, 24 VAC/VDC, or 12 VAC/VDC.
Power Consumption: 3.6 VA @ 115/230 VAC; 1.5 VA @ 12/24 VAC/VDC.
Accuracy: ±1% FS.
Display: 3-digit, plus sign.
Resolution: 0.1°.
Memory Backup: Nonvolatile memory.
Ambient Operating Temperature: 32 to 131°F (0 to 55°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 115 and 230 V models: 7.2 oz (204 g); 12 and 24 V models: 4.8 oz (136 g).
Front Panel Rating: IP65.
Agency Approvals: CE, cURus.

Ordering:

Model	Description
TSXT-011	Digital thermostat 1 relay output, 3 PTC/NTC probe input, red display, 115 VAC, capacitive touch keys, Modbus®.
TSXT-012	Digital thermostat 2 relay output, 3 PTC/NTC probe input, red display, 115 VAC, capacitive touch keys, Modbus®.
TSXT-013	Digital thermostat 3 relay output, 3 PTC/NTC probe input, red display, 115 VAC, capacitive touch keys, Modbus®.
TSXT-021	Digital thermostat 1 relay output, 3 PTC/NTC probe input, red display, 230 VAC, capacitive touch keys, Modbus®.
TSXT-022	Digital thermostat 2 relay output, 3 PTC/NTC probe input, red display, 230 VAC, capacitive touch keys, Modbus®.
TSXT-023	Digital thermostat 3 relay output, 3 PTC/NTC probe input, red display, 230 VAC, capacitive touch keys, Modbus®.
TSXT-031	Digital thermostat 1 relay output, 3 PTC/NTC probe input, red display, 12 VAC/DC, capacitive touch keys, Modbus®.
TSXT-032	Digital thermostat 2 relay output, 3 PTC/NTC probe input, red display, 12 VAC/DC, capacitive touch keys, Modbus®.
TSXT-033	Digital thermostat 3 relay output, 3 PTC/NTC probe input, red display, 12 VAC/DC, capacitive touch keys, Modbus®.
TSXT-041	Digital thermostat 1 relay output, 3 PTC/NTC probe input, red display, 24 VAC/DC, capacitive touch keys, Modbus®.
TSXT-042	Digital thermostat 2 relay output, 3 PTC/NTC probe input, red display, 24 VAC/DC, capacitive touch keys, Modbus®.
TSXT-043	Digital thermostat 3 relay output, 3 PTC/NTC probe input, red display, 24 VAC/DC, capacitive touch keys, Modbus®.
TSXT-211	Digital thermostat 1 relay output, 3 PTC/NTC probe input, blue display, 115 VAC, capacitive touch keys, Modbus®.
TSXT-212	Digital thermostat 2 relay output, 3 PTC/NTC probe input, blue display, 115 VAC, capacitive touch keys, Modbus®.
TSXT-213	Digital thermostat 3 relay output, 3 PTC/NTC probe input, blue display, 115 VAC, capacitive touch keys, Modbus®.
TSXT-221	Digital thermostat 1 relay output, 3 PTC/NTC probe input, blue display, 230 VAC, capacitive touch keys, Modbus®.
TSXT-222	Digital thermostat 2 relay output, 3 PTC/NTC probe input, blue display, 230 VAC, capacitive touch keys, Modbus®.
TSXT-223	Digital thermostat 3 relay output, 3 PTC/NTC probe input, blue display, 230 VAC, capacitive touch keys, Modbus®.
TSXT-231	Digital thermostat 1 relay output, 3 PTC/NTC probe input, blue display, 12 VAC/DC, capacitive touch keys, Modbus®.
TSXT-232	Digital thermostat 2 relay output, 3 PTC/NTC probe input, blue display, 12 VAC/DC, capacitive touch keys, Modbus®.
TSXT-233	Digital thermostat 3 relay output, 3 PTC/NTC probe input, blue display, 12 VAC/DC, capacitive touch keys, Modbus®.
TSXT-241	Digital Thermostat 1 Relay Output, 3 PTC/NTC Probe input, blue display, 24 VAC/DC, capacitive touch keys, Modbus®.
TSXT-242	Digital thermostat 2 relay output, 3 PTC/NTC probe input, blue display, 24 VAC/DC, capacitive touch keys, Modbus®.
TSXT-243	Digital thermostat 3 relay output, 3 PTC/NTC probe input, blue display, 24 VAC/DC, capacitive touch keys, Modbus®.
