2" Dials with Dual PSI/Bar x 100 kPa Scales
Utility Gage has a wide offering of ranges which are available from full vacuum to 300 psi. Applications include air regulators and pneumatic systems.
Features
-
Dual scale provides reading in easily recognizable units
-
Good accuracy gage for value-sensitive applications
-
Compact size provides for mounting with dimensional limitations
-
Higher accuracy gage for value-sensitive applications requiring more precise measurement
-

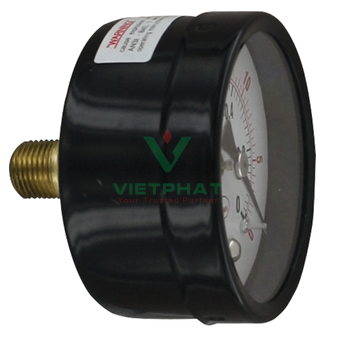

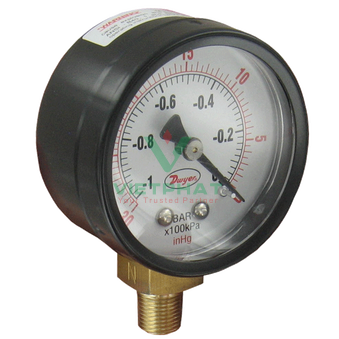

Back or bottom mounting and compact size provides for mounting with dimensional limitations
Product Applications
-
Air regulators
-
Pneumatic systems
Specifications
-
Service: Compatible gases and liquids.
-
Wetted Materials: Brass connection, phosphor bronze tube.
-
Housing: Black painted steel.
-
Lens: Polycarbonate.
-
Accuracy: ±2.5% FS.
-
Pressure Limit: FS range.
-
Temperature Limits: -4 to 140°F (-20 to 60°C).
-
Size: 2" (50 mm).
-
Process Connection: 1/8" NPT.
-
Weight: 3.8 oz (108 g).
