Series V8

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 677

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật

Service: Compatible gases or liquids.
Wetted Materials: Vane and Body: Polyphenylene Sulfide (PPS); Pin and spring: 316 SS or Inconel^®; Magnet: Ceramic 8.
Temperature Limit: 212°F (100°C).
Pressure Limit: 150 psig (10 bar).
Enclosure Rating: General purpose; WP/WP2 option is weatherproof.
Switch Type: SPDT snap switch; MV option: SPDT gold contact snap switch.
Electrical Rating: 5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC.
Electrical Connections: 18 AWG 18" (460 mm) long.
Conduit Connection: 1/2" male NPT, 1/2" female NPT on WP and WP2.
Process Connection: 1" male NPT.
Mounting Orientation: Actuation/deactuation flow rates are based on horizontal pipe run and are nominal values. Unit cannot be used with vertical down flow.
Set Point Adjustment: Vane is trimmable.
Weight: 4.5 oz (0.13 kg).
Agency Approvals: CE, cURus.

Ordering:

Model	Description

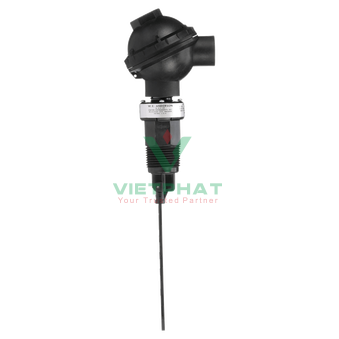

V8	Vane operated flow switch.

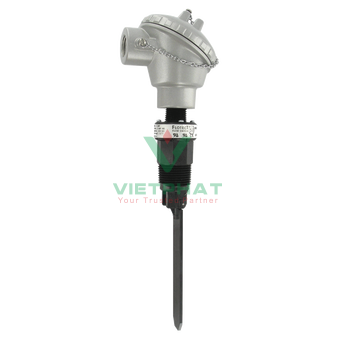

V8-WP	Vane operated flow switch with weatherproof enclosure (phenylpolioxide).

Chọn sản phẩm

Giá	Tên HH	Mã HH
Liên hệ	Công tắc dòng chảy V8_INC	V8-INC
Liên hệ	Công tắc dòng chảy V8_WV	V8-WV
Liên hệ	Công tắc dòng chảy V8_ST	V8-ST
Liên hệ	Công tắc dòng chảy V8_WP	V8-WP
Liên hệ	Công tắc dòng chảy V8_WP2	V8-WP2
