Model
|
AL-160
|
AL-160L
|
|
Structure
|

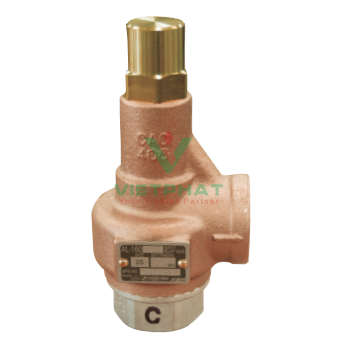

Closed type
|

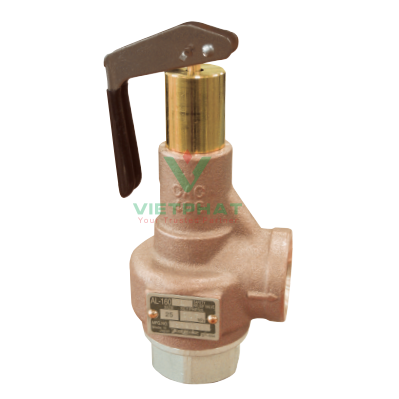

Open type with a lever
|
|
Application
|
Steam, Air, Water, Oil, Non-dangerous fluids
|
Steam, Air
|
|
Working pressure
|
0.05-1.0 MPa
|
|
|
Maximum temperature
|
220°C
|
220°C
|
|
Material
|
Cast bronze
|
|
|
Cast stainless steel (SCS14A)
|
||
|
Connection
|
JIS Rc screwed
|
|
| Tiêu đề | Link download |
|---|---|
| Van an toàn AL-160 | Van an toàn AL-160 |
