Model
|

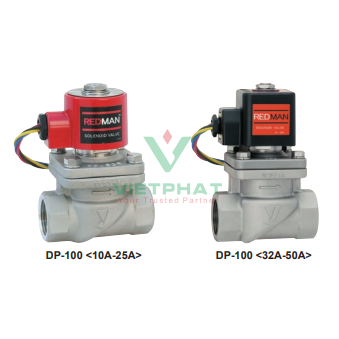

DP-100
|

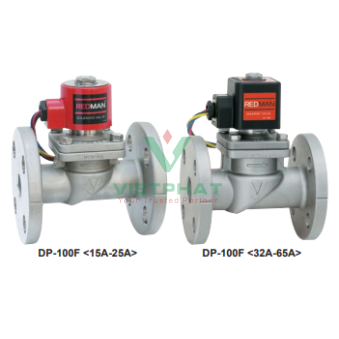

DP-100F
|
|
|
Application
|
Steam, Air, Cold and hot water, N2 gas, CO2 gas (dry), Ar gas, Oil (20 cSt or less)
|
||
|
Working pressure
|
0-1.0 MPa (unusable under vacuum)
|
||
|
Min. differential pressure
|
0 MPa (0.03 MPa or more is required for vertical installation)
|
||
|
Allowable valve seat leakage
|
50 mL/min under standard conditions (at air pressure of 0.6 MPa)
|
||
|
Temperature range
|
5-180°C (no freeze condition)
|
||
|
Operation
|
Normally closed
|
||
|
Material
|
Body
|
Cast stainless steel (SCS14A)
|
|
|
Piston
|
Stainless steel (SCS14A)
|
||
|
Valve disc
|
PTFE
|
||
|
Connection
|
JIS Rc screwed
|
JIS 10K FF flanged
|
|
|
Size
|
10A-50A
|
15A-65A
|
|
