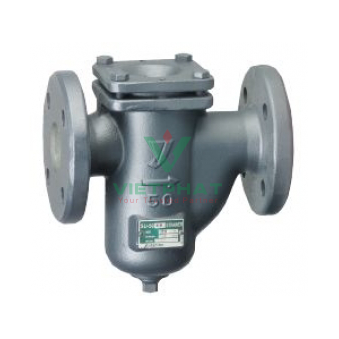

Model
|
SU-50H
|
SU-50S
|
SU-50SS
|
|
|
Application
|
Water, Oil
|
Water, Oil, Flushing water
|
||
|
Nominal size
|
50A, 65A, 80A, 100A, 150A
|
|||
|
Maximum pressure
|
2.0 MPa
|
1.0 MPa
|
||
|
Maximum temperature
|
80°C
|
|||
|
Material
|
Body
|
Ductile cast iron*
|
Ductile cast iron with Epoxy Coating
|
|
|
Cover
|
Ductile cast iron
|
Carbon steel
|
Stainless steel
|
|
|
O-ring
|
NBR
|
|||
|
Screen
|
Stainless steel (SUS316)
|
|||
|
Screen
|
Perforation
|
Ø 2.5-7.21 holes/cm²
|
||
|
Mesh
|
Standard 60 mesh
|
|||
|
Connection
|
JIS 20K RF flanged or BS4504 PN16 flanged
|
|||
