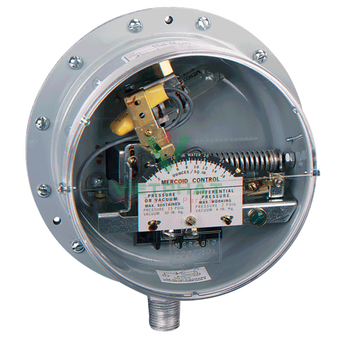

External Adjustment, Visible Dial, Hermetically Sealed Snap or Mercury Switch
Gas Pressure/Differential Pressure Switch is used with air and other compatible gases. Clear easy-to-read, and convenient external setpoint adjustment. Applications include natural, manufactured or LP gas.
Features
-
Clear easy-to-read scale and external set point adjustment simplifies operation and trouble shooting
-
Large diaphragm provides accuracy for precise control
-
Multiple switching options meet the design of applications
Product Applications
Specifications
-
Wetted Materials: Fairprene, brass, steel, and aluminum.
-
Temperature Limits: -10 to 180°F (-23 to 82°C).
-
Pressure Limit: Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure, range P1: 2 psig (.14 bar); sustained pressure, range P2: 10 psig (0.7 bar).
-
Enclosure Rating: General purpose. Weatherproof and explosion-proof optional.
-
Repeatability: ±1% of full range.
-
Switch Type: See Ordering page.
-
Electrical Rating: See Ordering page.
-
Electrical Connections: Screw type.
-
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
-
Process Connection: 1/2" male NPT and 1/8" female NPT used for single positive pressure or high differential pressure, 1/8" female NPT used for single vacuum or low differential pressure.
-
Mounting Orientation: Vertical.
-
Set Point Adjustment: External screw.
-
Weight: 4.5 lb (2 kg).
-
Deadband: See Ordering page.
-
Agency Approvals: UL, CSA, FM for mercury switch models. UL only on snap switch models.
