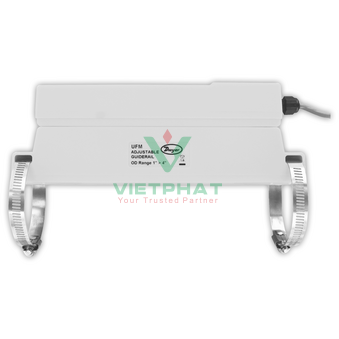

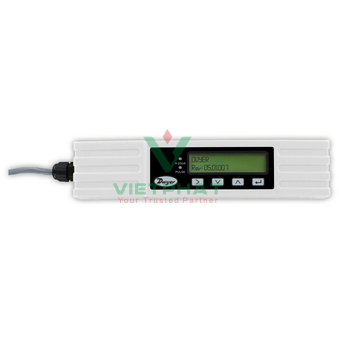

Model UFM

• Service: Clean water with <3% by volume of particulate content.
• Range: 0.33 to 32.8 ft/s (0.1 to 10 m/s).
• Display: Backlit: 3.27" H x 0.74" W (83.1 mm x 18.8 mm), 2 line x 16 characters.
• Accuracy: ±3% of flow reading for > 0.98 ft/s (> 0.3 m/s).
• Power Requirements: 12 to 24 VDC or VAC.
• Power Consumption: 7 W max.
• Temperature Limits:
  • Process: 32 to 185°F (0 to 85°C);
  • Ambient: 32 to 122°F (0 to 50°C).
• Outputs:
  • Analog: 1 opto-isolated: 4 to 20 mA; Error current: 3.5 mA;
  • Load resistance: 620 O max;
  • Pulse: 1 opto-isolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max.
• Enclosure Rating: IP54.
• Enclosure Material: Plastic polycarbonate.
• Repeatability: ±0.5% of measured value.
• Electrical Connections: 16.4' (5 m) cable.
• Response Time: < 1 s.
• Weight: 2.9 lb (1.315 kg).
• Agency Approvals: CE.

ADDITIONAL SPECIFICATIONS

• Applicable Pipe Material: Steel, copper, or plastic.
• Pipe Outside Diameter: 0.98 to 4.62" (24.89 to 117.35 mm).
• Applicable Pipe Lining: None.
• Pipe Wall Thickness: 0.02 to 0.39" (0.5 to 10 mm).
