Model ULSM

Chưa có lượt đánh giá nào - Chưa có câu hỏi nào - 755

Yêu cầu báo giá

Tổng quan về sản phẩm

Thông số kỹ thuật:

Service: Compatible fluids.
Wetted Materials: Sensor: PVDF; O-ring: FKM.
Ranges: 9.8' (3 m).
Accuracy: ±0.2% of range.
Resolution: 0.039" (1 mm).
Blind Zone: 4" (10 cm).
Beam Width: 2" (5 cm).
Temperature Limits: Process: 20 to 140°F (-7 to 60°C); Ambient: -31 to 140°F (-35 to 60°C).
Temperature Compensation: Automatic.
Pressure Limits: 30 psi (2 bar).
Power Requirement: 12 to 28 VDC.
Output Signal: 4 to 20 mA, 2-wire; Invert: 4 to 20 mA or 20 to 4 mA; Fail-safe: 4 mA, 20 mA, 21 mA, 22 mA, or hold last.
Loop Resistance: 400 Ω max.
Electrical Connections: 4' (1.2 m) 9 conductor shielded cable.
Contact Type: 4 SPST relays.
Contact Rating: 1 A max @ 28 VDC max.
Deadband: Selectable: Selectable (no hysteresis, 1/4", 1/2", 1", 1/2 cm, 1 cm, 2 cm, 5 cm or not available).
Process Connection: 1" NPT, 1" BSPP (optional).
Enclosure Rating: NEMA 6P (IP68).
Enclosure Material: Polycarbonate; Gland: TPE.
Mounting Orientation: Vertical.
Memory: Non-volatile.
Failsafe: Contact: Power loss: Hold last contact; Power on: Open, close, or last contact.
Programming: Free PC software download (USB adapter required).
Weight: 1.5 lb (0.68 kg).
Agency Approvals: CE, RoHS.

Accessories:

Model Number	Description

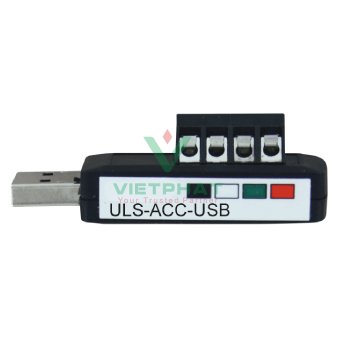

ULS-ACC-USB	USB adapter for calibration, PVC. *USB adapter necessary for calibration. One adapter can program multiple units.
ULS-ACC-121	2" x 1" NPT reducer bushing fitting (Sch. 40), PVC
ULS-ACC-122	2" x 1" NPT reducer bushing fitting (Sch. 80), PVC
ULS-ACC-221	2" socket x 1" NPT reducer bushing fitting (Sch. 40), PVC
ULS-ACC-222	2" Socket x 1" NPT reducer bushing fitting (Sch. 80), PVC
ULS-ACC-510	1" NPT polypropylene side mount bracket
ULS-ACC-131	3" x 2" NPT reducer bushing fitting (Sch. 40), PVC
ULS-ACC-132	3" x 2" NPT reducer bushing fitting (Sch. 80), PVC
ULS-ACC-142	4" x 2" NPT reducer bushing fitting (Sch. 80), PVC
ULS-ACC-231	3" Socket x 2" NPT reducer bushing fitting (Sch. 40), PVC
ULS-ACC-232	3" Socket x 2" NPT reducer bushing fitting (Sch. 80), PVC
ULS-ACC-241	4" Socket x 2” NPT reducer bushing fitting (Sch. 40), PVC
ULS-ACC-242	4" Socket x 2" NPT reducer bushing fitting (Sch. 80), PVC
ULS-ACC-520	2" NPT polypropylene side mount bracket

Ordering:

Model	Description
ULSM-10	Ultrasonic level sensor, 9.8' (3 m) measuring range, non-contact transmitter, 4 SPST programmable relays, 1" NPT thread. (USB adapter necessary for calibration. One adapter can program multiple units.)
