Set Points from 0.07" to 20" w.c., Repetitive Accuracy within 3%

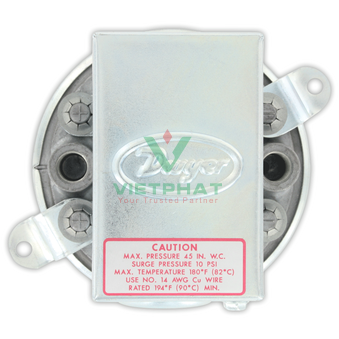

Compact Low Differential Pressure Switches
Features
-
Compact size and repeatability, provides a high-value switch for many industrial and OEM applications
-
Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch
-
Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering
Product Applications
-
Air conditioning refrigeration coil icing detection; defrost cycle intiation.
-
Clogged filter detection.
-
Variable air volume controller.
Specifications
-
Service: Air and non-combustible, compatible gases.
-
Wetted Materials: Consult factory.
-
Temperature Limits: -30 to 180°F (-34 to 82.2°C).
-
Pressure Limits: 45" w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.
-
Switch Type: Single-pole double-throw (SPDT).
-
Repeatability: ±3%.
-
Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates.
-
Electrical Connections: 3 screw type, common, normally open and normally closed.
-
Process Connections: 1/8" female NPT.
-
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
-
Set Point Adjustment: Screw type inside conduit enclosure.
-
Weight: 1 lb 4.5 oz (581 g).
-
Agency Approvals: CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
