Series 1900

  • Thương hiệu:
  • Sản xuất tại:
    Mỹ
  • Mã HH:
  • Đơn vị tính:
    Cái
Tổng quan về sản phẩm
Set Points from 0.07" to 20" w.c., Repetitive Accuracy within 3%

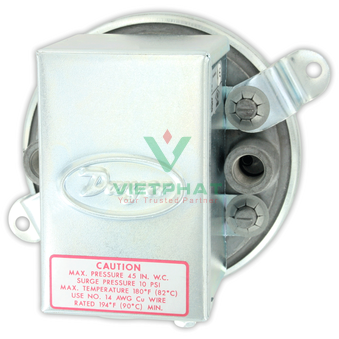

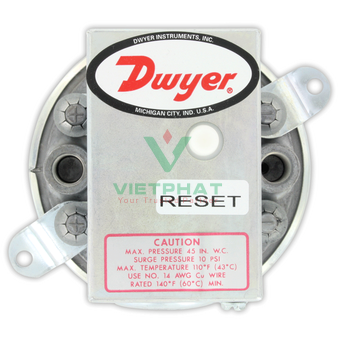

Compact Low Differential Pressure Switches

Features
  • Compact size and repeatability, provides a high-value switch for many industrial and OEM applications
  • Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch
  • Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering
Product Applications
  • Air conditioning refrigeration coil icing detection; defrost cycle intiation.
  • Clogged filter detection.
  • Variable air volume controller.
Specifications
  • Service: Air and non-combustible, compatible gases.
  • Wetted Materials: Consult factory.
  • Temperature Limits: -30 to 180°F (-34 to 82.2°C).
  • Pressure Limits: 45" w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.
  • Switch Type: Single-pole double-throw (SPDT).
  • Repeatability: ±3%.
  • Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates.

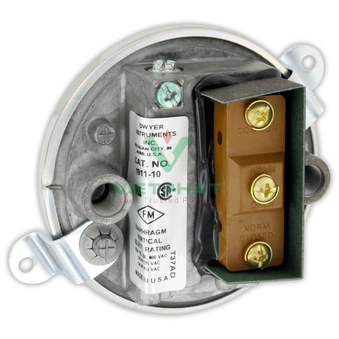

  • Electrical Connections: 3 screw type, common, normally open and normally closed.
  • Process Connections: 1/8" female NPT.
  • Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
  • Set Point Adjustment: Screw type inside conduit enclosure.
  • Weight: 1 lb 4.5 oz (581 g).
  • Agency Approvals: CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
Chọn sản phẩm
Chọn Giá Tên HH Mã HH
Liên hệ
Công tắc áp suất 1900-10-MR
1900-10-MR
Liên hệ
Công tắc áp suất 1900-5-MR
1900-5-MR
Liên hệ
Công tắc áp suất 1910-0
1910-0
Liên hệ
Công tắc áp suất 1910-00
1910-00
Liên hệ
Công tắc áp suất 1910-1
1910-1
Liên hệ
Công tắc áp suất 1910-10
1910-10
Liên hệ
Công tắc áp suất 1910-20
1910-20
Liên hệ
Công tắc áp suất 1910-5
1910-5
Liên hệ
Phụ kiện A-399
A-399
Liên hệ
Phụ kiện A-329
A-329
Liên hệ
Phụ kiện A-489
A-489
Liên hệ
Phụ kiện A-302F-A
A-302F-A
Tài liệu tham khảo
Tiêu đề Link download
Series 1900 Catalog Page Series 1900 Catalog Page
