Suitable for Total Pressures Up to 100 psig, Temperatures Up to 150°F, Accuracy ±2% of Full Scale (1% on Models 215, 244, 246 Only)

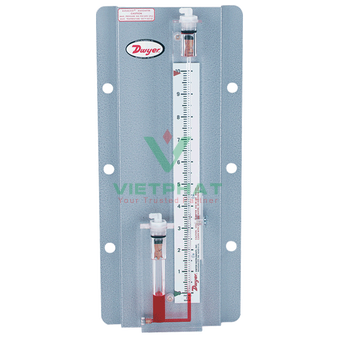

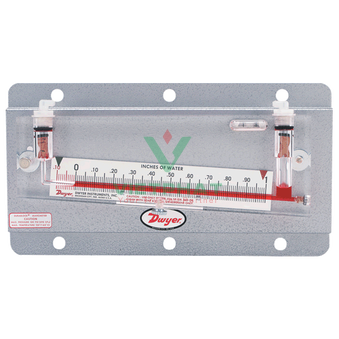

Durablock® Solid Plastic Stationary Gage offered in inclined and vertical styles for highly accurate laboratory.
Features
-
1" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and free of the danger of distortion.
-
Drilled Bore Accurate to ±.0002" free of bends or crooks, will not require recalibration because of distortion.
-
Selected Gage Fluid with high wetability characteristics forms a consistent, well shaped meniscus for most accurate readability.
-
Adjustable Reflective Polished Aluminum Scales with thumbscrew locking for easy zeroing.
-
Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the scale.
-
Over-Pressure Safety Traps prevent loss of fluid due to over range pressures or surges in pressure. (Not required on No. 215.)
-
Leveling Adjustment for inclined style gages is achieved by simply loosening a locking thumb screw on the side or bottom of the gage, adjusting with reference to the integral sensitive ground glass bubble level and retightening.
-
Heavy Gage Steel Mounting Panels are gray hammerloid finished.
-
Precision Built assures device meets the highest standards
