Accuracy to ±0.25%

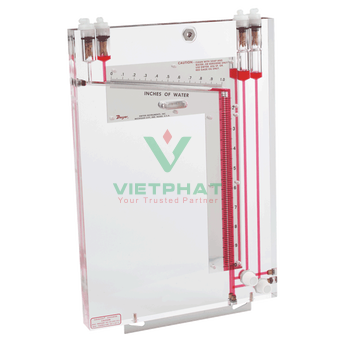

Durablock® Inclined-Vertical Manometer is an inclined-vertical manometer which is applied to low pressure laboratory and test applications.
Features
-
1-1/4" THICK ACRYLIC PLASTIC BODY is a solid block, virtually unbreakable, stable and absolutely free of the danger of distortion.
-
3/16" BORES, ACCURATE TO ± .0002" are permanently free of bends or crooks, will not require recalibration because of distortion.
-
GROUND GLASS BUBBLE LEVEL sensitive to 115-125 sec./2 MM. is 1-1/2" long x .375" diameter and provided with two red lines for easy visibility and alignment.
-
PARALLAX-FREE READING for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the polished aluminum scale.
-
SELECTED GAGE FLUID with high wetability characteristics forms a consistent, well shaped meniscus for perfect readability.
-
O-RING SEALED FLUID LEVEL PLUNGER ADJUSTMENT for easy zeroing.
-
PRECISION BUILT to assure device meets the highest standards.
