HART®, Push Button Configuration, Rangeability (100:1)

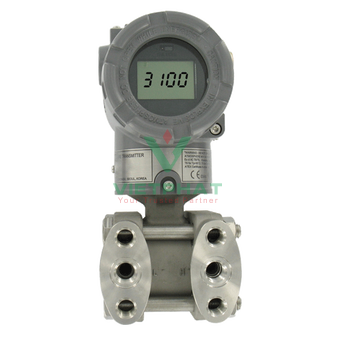

Explosion-Proof Multiplanar Differential
Pressure Transmitter is a microprocessor which has a flexible pressure calibration. Design simplifies installation.
Features
-
Completely configurable using zero/span button (no calibrator required)
-
Rangeability (100:1)
-
Multiplanar
-
Fits standard manifold valves
-
Automatic sensor temperature compensation
-
Easy installation
Product Applications
Specifications
-
Service: Compatible gases, steam, liquids or vapors.
-
Wetted Materials: 316L SS.
-
Accuracy: ±0.075% FS (@ 20°C).
-
Rangeability: 100:1 turn down.
-
Stability: ±0.125% FSO/yr.
-
Temperature Limits:
-
>Process: -40 to 248°F (-40 to 120°C);
-
Ambient: Without LCD: -40 to 185°F (-40 to 85°C);
-
With LCD: -22 to 176°F (-30 to 80°C).
-
Pressure Limits: Max. pressure: Range: -14.5 to 2000 psi; Burst pressure: 10000 psi.
-
Thermal Effect: ±0.125% span/32°C.
-
Power Requirements: 11.9 to 45 VDC.
-
Output Signal: 4 to 20 mA /HART® Communication.
-
Response Time: 0.12 s.
-
Damping Time: 0.25 to 60 s.
-
Loop Resistance:
-
Electrical Connection: Two 1/2" female NPT conduit, screw terminal.
-
Process Connection: 1/4" female NPT.
-
Display: Optional 5 digit LCD.
-
Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I, Div I, Groups A, B, C and D.
-
Weight: 8.6 lb (3.9 kg).
-
Agency Approvals: CE, FM, ATEX option available (consult factory).
