3% Accuracy for Stationary and Portable Applications
Molded Plastic Manometers are of the inclined and inclined-vertical type. Applications include paint booths, air filter gage, and air velocity measurement.
Features
-
Broad ranging in easy to read calibrated increments
-
Gages ideally suited for general measurements and specific air applications
-
Compact, stationary or portable device, make it a simple to use tool for pressure measurement in OEM or user applications
Product Applications
-
Paint booths
-
Air velocity measurement
-
Air filter gage
Specifications

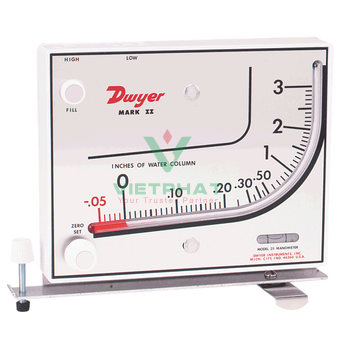

INCLINED/VERTICAL
-
Accuracy: ±3% FS.
-
Temperature Limits: 140°F (60°C).
-
Pressure Limits: 10 psi (70 kPa).
-
Weight: 1.04 lb (472 g).
-
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

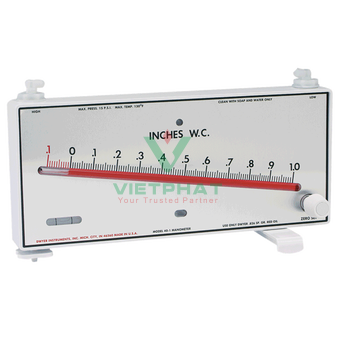

INCLINED
-
Accuracy: ±3% FS.
-
Temperature Limits: 150°F (65°C).
-
Pressure Limits: 15 psi (100 kPa).
-
Scale Length: Approx. 8-1/4" (21 cm).
-
Weight: 1.23 lb (558 g).
-
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
