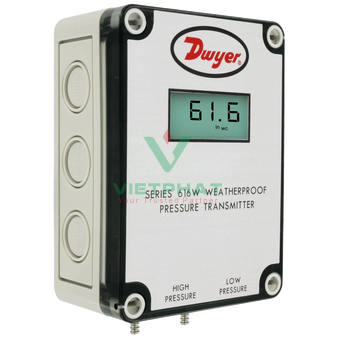

NEMA 4X Enclosure, 0.25% FS Accuracy
Positive, negative and differential pressures can be measured within a full span accuracy of ±0.25.
Features
-
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
-
Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
-
Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
Product Applications
-
Dust collection
-
Outdoor HVAC
-
Roof-top equipment
Specifications
-
Service: Air and non-combustible, compatible gases.
-
Wetted Materials: Consult factory.
-
Accuracy: ±0.25% FS @ 77°F (25°C), display accuracy ±0.5%.
-
Stability: ±1% FS/yr.
-
Temperature Limits: 14 to 185°F (-10 to 85°C).
-
Pressure Limits: See Model chart on catalog page.
-
Power Requirements: 10 to 35 VDC (2-wire), 17 to 36 VDC, or isolated 21.6 to 33 VAC (3-wire).
-
Output Signal: 4 to 20 mA (2-wire), 0 to 5 VDC, or 0 to 10 VDC (3-wire).
-
Zero and Span Adjustments: Push buttons.
-
Loop Resistance: Current output: 0 to 1250 Ω max; Voltage output: Load resistance 1 kΩ (min).
-
Current Consumption: 40 mA (max).
-
Electrical Connections: 3-wire removable European style terminal block for 16 to 26 AWG.
-
Process Connections: Barbed, dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) ID rubber or vinyl tubing.
-
Enclosure Rating: NEMA 4X (IP66).
-
Mounting Orientation: Any orientation.
-
Weight: Without LCD 8.8 oz (249 g); with LCD 9.6 oz (272 g).
-
Agency Approvals: CE.
