Quick Response, Easy Calibration Checks

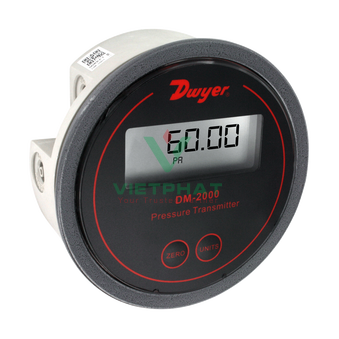

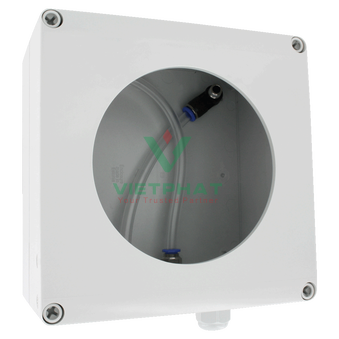

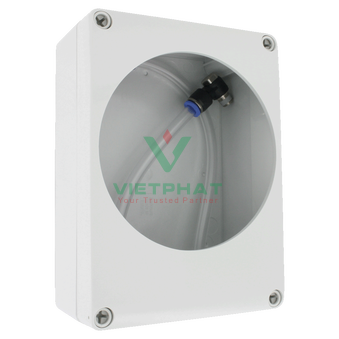

Differential Pressure Transmitter senses pressure of air and gases and sends an output signal. Designed to mount in the same diameter cutout as a Magnehelic gage.
Features
-
Zero and span controls provide easy calibration checks and shorter installation time to get device running and monitoring
-
Quick response to pressure changes means no delay in signaling and alerting to critical situations
-
Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
-
Same size as Magnehelic simplifies field upgrade to digital pressure gage by reducing install steps
-
Tamper proof button configuration to prevent accidental changes to the settings
Product Applications
Specifications
-
Service: Air and non-combustible, compatible gases.
-
Wetted Materials: Consult Factory.
-
Accuracy: ±1% FS, ±30 Pa model ±4% FS at 70°F.
-
Stability: ±1% FS/yr.
-
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
-
Pressure Limits: 10 psig (0.69 bar).
-
Thermal Effect: ±0.055% FS/°F (0.099% FS/°C), ±30 Pa model ±0.13% FS/°F (0.234% FS/°C).
-
Power Requirements: 10 to 35 VDC (2 wire).
-
Output Signal: 4 to 20 mA.
-
Zero and Span Adjustments: Digital push-button zero and span.
-
Loop Resistance: DC: 0 to 1250 Ω maximum.
-
Current Consumption: DC: 38 mA maximum.
-
Electrical Connections: Screw-type terminal block.
-
Display: 3.5 digit LCD, 0.7" height.
-
Process Connections: 1/8" I.D. tubing.
-
Mounting Orientation: Vertical.
-
Weight: 4.8 oz (136 g).
