Thông số kỹ thuật:
- Input: Thermocouples J, K, R, S, T, N, E, and B; 2, 3, or 4 wire Pt100 RTD, 2 or 3 wire Pt1000 RTD, 2 wire NTC thermistor, or 0 to 50 mV voltage.
- Output: Linearized 4 to 20 mA, 2 wire or 20 to 4 mA loop powered.
- Transmitter Type: 2, 3, or 4 wire.
- Temperature Limits: -40°F to 185°F (-40 to 85°C).
- Power Requirements: 10 to 35 VDC.
- Accuracy: See catalog page.
- Temperature Drift: < ±0.16% / 25°C.
- Response Time: 1.6 s, typical.
- Weight: 1.4 oz (40 g).
Note: Factory set to Pt100 Ω RTD, 0 to 100°C, direct acting.
Ordering:
|
Model
|
Description
|
|
TBU-00
|

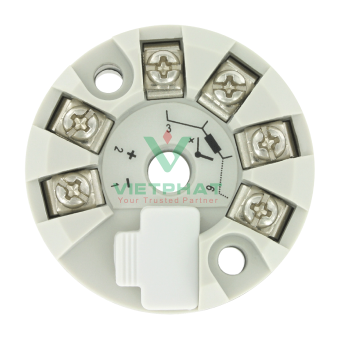

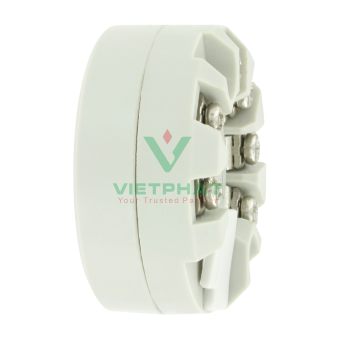

Universal head mount temperature transmitter
|
