Thông số kỹ thuật:

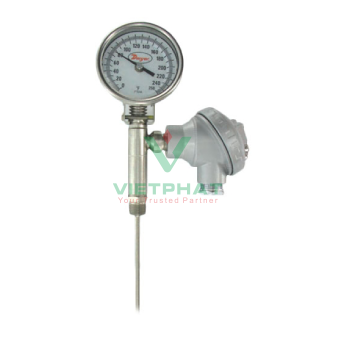

THERMOMETER SPECIFICATIONS:
- Wetted Material: 304 SS.
- Housing Material: 304 SS.
- Lens: Glass.
- Accuracy: ±1% of FS.
- Temperature Limits: Ambient: -58 to 185°F (-50 to 85°C).
- Dial Size: 3" or 5".
- Process Connection: 1/2" NPT.
- Resolution: 2°F (5°F for 400°F and 550°F models).
- Weight: 1.95 lb (885 g).
TRANSMITTER SPECIFICATIONS:
- Temperature Limits: Ambient: -58 to 185°F (-50 to 85°C).
- Power Requirement: 10 to 33 VDC.
- Output Signal: 4 to 20 mA.
- Loop Resistance: 1045 Ω.
- Power Consumption: 38 mA.
- Enclosure Rating: NEMA 4X (IP66).
